- · Model: DLC 45
- · Number of section : 9
- · Max height for operation
(Number of floors available for operation): 45M (Approximately 17 floors) - · Material : High tensile aluminium alloy
- · Size: Length: 7715, Width: 2160, Height: 3140 (MM)
- · Power source: P.T.O(Vacuum)
- · Fuel: Diesel
- · Carrier size: 2400x1520x550(Expended)
- · Max load: 400kg
- · Speed: 60m/min
- · Outrigger: Hydraulic 4EA
- · Auxiliary outrigger: Optional
- · Swing bearing : Nation's first adoption of SISI 640
- · Automatic transfer equipment : Nation's first adoption of Photoelectric Sensors(Optional)
- · Remote Controller: Cable(Standard), Wireless(Optional)

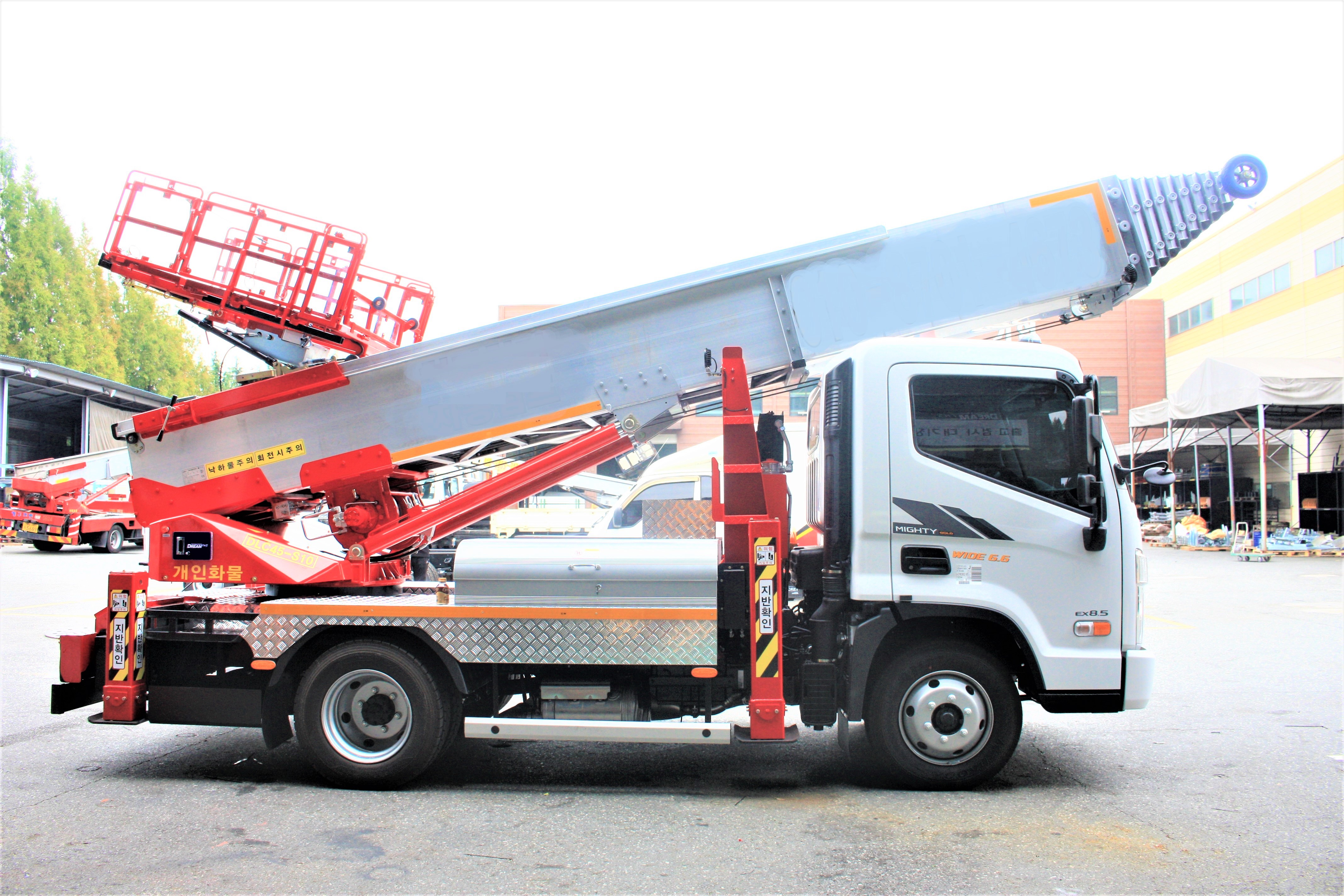

- · Mounting vehicle: Hyundai 3.5ton Mighty GOLD
